Replaces Part Number : For Curtis1204/1204-027 , Made According to Original Products, Quality is Guaranteed, Tested Before Shipping.
Applicable Models : This controller fits Golf Carts Club Car
Please Refer to Your Own Part and Make Sure Your Part is 36V / 275A / 0-5K??, By default, We will the controller of setting of 37V/ 275A / 0-5K??.

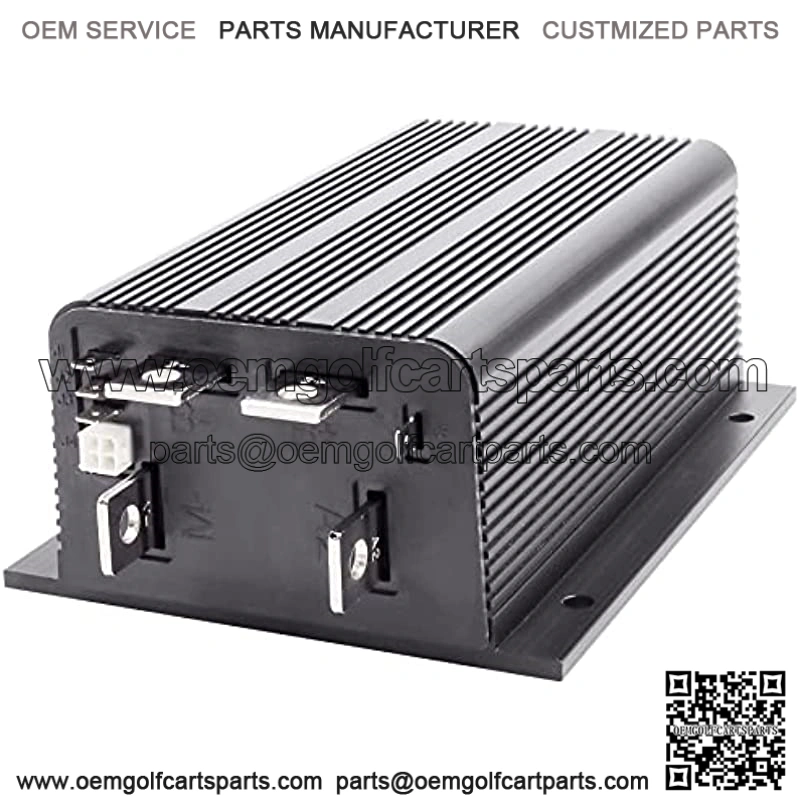

For Curtis (1204) short body controller with four buss bars is pre-set for 0-5K throttle but It can be adjusted with a hand held Curtis programmer #1313-3301 for use with 8 other throttle inputs. Many other parameters such as acceleration, HPD, voltage, plugging and more are also adjustable.
1 Year Warranty : We Test Each Item and 100% Ensure That Before We Ship, Before and After Sales, We Will Provide Warranty Service For Damaged Products, True Worry-Free Shopping Experience.
We supply motor controller & assemblage, programmer, contactor, accelerator (throttle), meter / gauge, and many other parts, we provide a wild range of products, corresponding each sector of electric vehicle & forklift.
Motor Controller,For Curtis 1204-015
For Curtis 1204-410/412
For Curtis 1205-5603
For Curtis 1510-5201/5250
For Curtis 1243-4320
For EZ-GO 73326G02
Voltage (Volts)
36V 48V 48V 48v 36V 36V
Current (amps)
275A 325A 500A 275A 300A 350A
Throttle Type
0-5K?? 5K-0?? 0-5K??
0-5V
Battery Voltage:36V(default setting), 24V
Throttle Type: 0-5K??(default setting), 5-0K?? or 0-5V
Current Rating (amps): 275A
If You Need to Modify Any Controller Parameter, You Need to Have a CURTIS 1313-4331 Handheld Programmer.
If Your Motor Controller is Not 36V/ 0-5K??/275A,
If You Don’t Sure The Item Compatible With Your Car,
Please Provide The Picture of Your Original Part To Us.
Key Features: For CURTIS Model 1204M-4201, 1204-027 Norminal Battery Voltage (Volts): 36V (default setting) or 24V2 Minute Current Rating (amps): 2755 Minute Current Rating (amps): 2001 Hour Current Rating (amps): 125Plug Braking (A2 Busbar): YesStatus LED output current (max.): < 2 mATen throttle types can be used with these controllers:Type 0: 2-wire potentiometer, 0?C5k?? Type 1: 2-wire potentiometer, 5k???C0 Type 2: single-ended 0?C5V input Type 3: 2-wire potentiometer, 4.6k???C0 Type 4: 2-wire potentiometer, 5.5k???C0 Type 5: 2-wire potentiometer, 1k???C0 Type 6: ITS input Type 7: single-ended 6.3?C10.6 V input Type 8: single-ended 6?C12 V input Type 9: single-ended 3-wire potentiometer, 0?C5k??Operating ambient temperature range: -40??C to 50??CStorage ambient temperature range: -40??C to 85??C
